Product Details:
Payment & Shipping Terms:
|
| Tank: | 80L Aluminum Alloy Fuel Tank | Maximum Lifting Load Of Grab Bucket: | Full Output Arm 750kg |
|---|---|---|---|
| Grab Tool: | 360°unrestricted Rotation | Grab Bucket Opening Size: | 1.5m |
| Grab Arm Size: | 6-meter Grab Arm | ||
| Highlight: | XDEM Wood Truck Dump Machine |
||

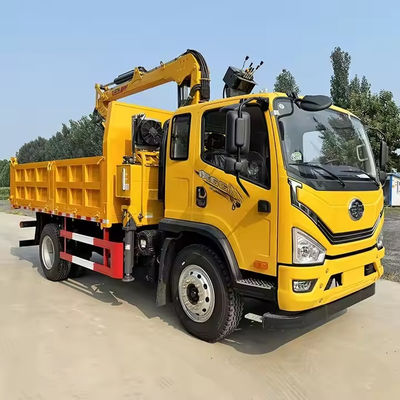

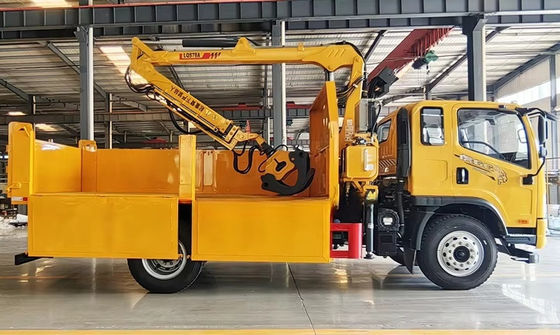

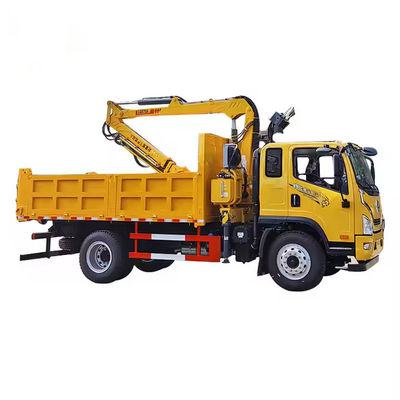

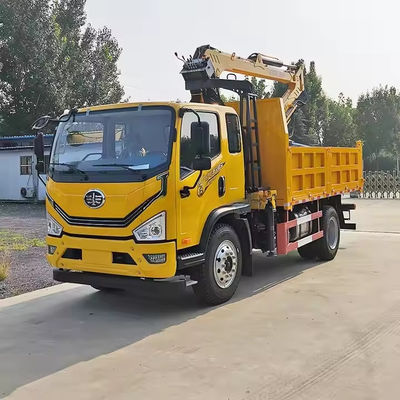

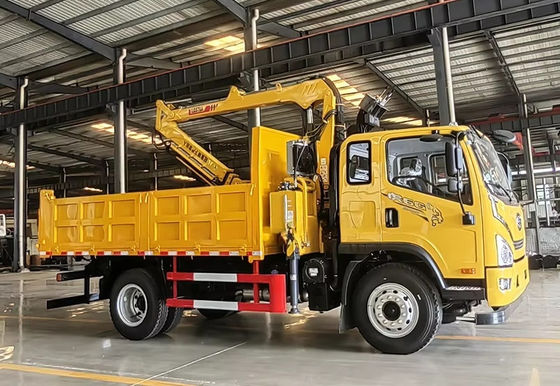

Product Information
This product is used for loading, unloading, transporting, stacking or dismantling wood, grass and reeds, bamboo, etc. Hydraulic transmission is adopted, which has the characteristics of compact structure, flexibility, convenient operation and quick dismantling. Tractors usually use hydraulic fluid. The hydraulic components have a high degree of standardization and are easy to operate and maintain.
Parameters
| Engine | YUNNEI 160 horsepower |
| Transmission case | 8J45TA |
| The front axle | 2T (drum type) |
| Tear axle | 1880/single row |
| Cab | 1880/single row |
| Interior of the driver's cabin | All inclusive interior (without sunroof) |
| Wheelbase | 3280 |
| Frame | 180/800 |
| Suspension | 3/5+3H small |
| Tyre | 7.00R16-8PR iron steel ring without inner tube |
| Tank | 80L aluminum alloy fuel tank |
| ABS | ABS (with automatic adjustment arm) |
| Braking | Air brake |
| Rotary mechanism | Latest gear rack oil cylinder rotating mechanism |
| Grab arm size | 6-meter grab arm |
| Grab bucket opening size | 1.5m |
| Maximum lifting load of grab bucket | Full output arm 750kg |
| Rotation angle of slewing bearing | 360°discontinuous, 180°left, 180°right |
| Grab tool | 360°unrestricted rotation |
| Hydraulic support leg | Two hydraulic support legs (with a two-year warranty for largefactory oil cylinders, only replacement without repair) |
Company Profile
Nanyang Xinda Electro Mechanical (XDEM) is a new intelligent equipment manufacturing enterprise that integrates research and development, production, and sales. The company mainly deals in various types of products such as ship cranes, crane, off-road forklift tail cranes, articulated cranes, crawler mounted cranes, garden mounted cranes, spider cranes, tractor flatbed cranes, small cranes, truck mounted excavators, crawler mounted excavators. These products are suitable for various scenarios such as urban and rural construction, agricultural landscaping, port terminals, power engineering, and municipal engineering.
